Applies to: Zosi C308 camera and ZR08EN / ZR08DN / ZR16DK /ZR08PM/ZR08UN/ZR08DM/ZR08DQ/ZR16DB/ZR08SN/ZR16SK POE NVR System.

In fact, you can use the wireless camera C308 separately.

If you want to connect the C308 camera to ZOSI POE NVR: ZR08EN / ZR08DN / ZR16DK and others model systems, the camera and POE NVR must be connected to the same router;

If you have ZR08DN / ZR16DK Model System,please note that you should have the correct steps for how to add the camera to the Poe Nvr.

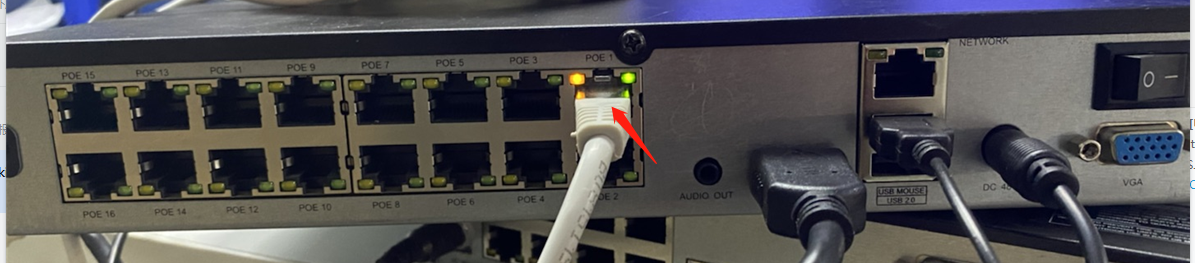

Step 1 ，Connect the net cable to the POE port, click Search. Generally, a new ip address will pop up and you can easily find it. If not, try to contact our agents for the upgrade file to upgrade your the POE Box. Please note that this one unconnected image will not be displayed.

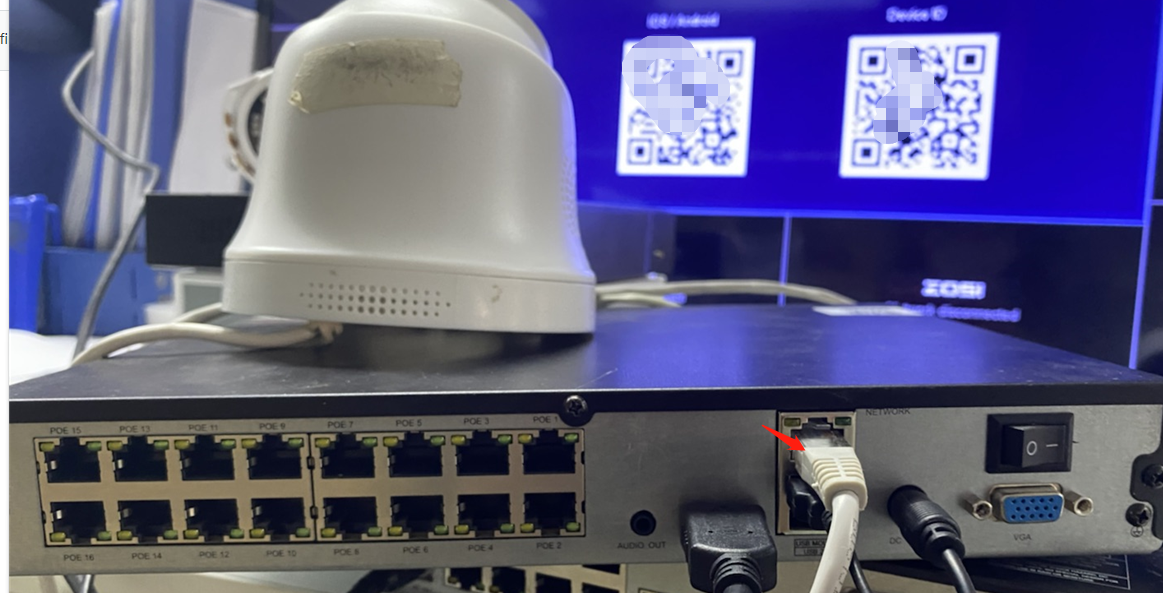

Step 2, Plug the net code into the NVR external network port, the video will be viewed.

There are two ways to connect C308 camera to these POE NVRs:Wireless Connection and Wired Connection.

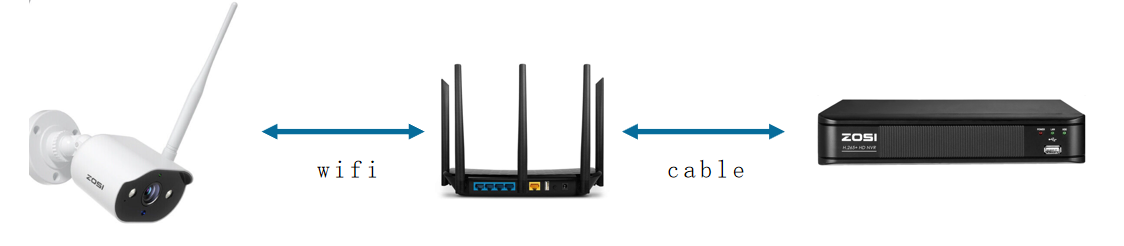

Method 1:  Wireless Connection

1)Add your Zosi C308 to your zosi smart app;

2)Connect the NVR to the same Router through Ethernet cable.

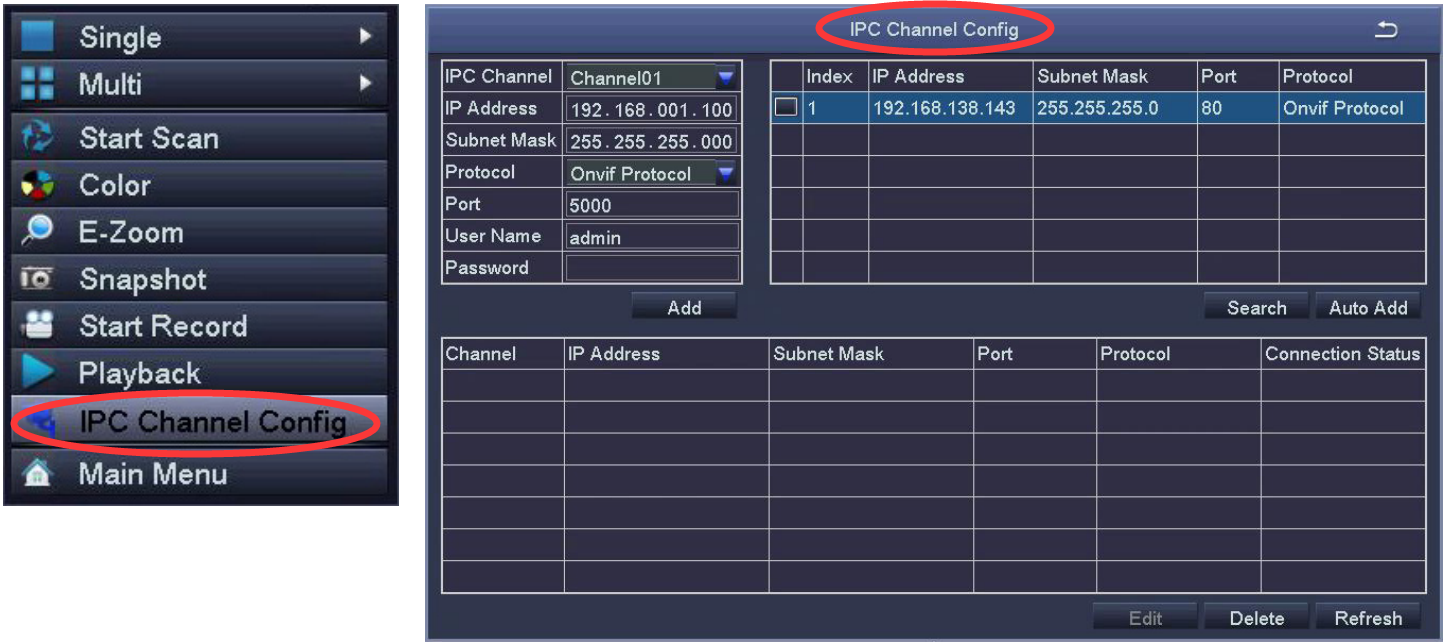

Enter NVR's IPC Channel Config to click "Search" to find the camera.

3) After you find the camera, please click "Add all" to add the camera.

And it will be added to the NVR successfully.

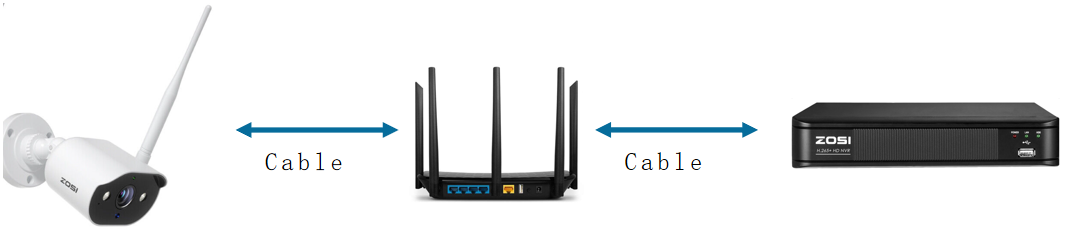

Method 2:  Wired Connection

1) Connect the wireless camera with power adapter(12V-1A). Make sure your C308 camera and zosi POE NVR system are connected to the same Router through Lan cables, so the two devices will be in the same network.

3) Enter NVR's IPC Channel Config to click "Search" to find the camera.

4) After you find the camera, please click "Add all" to add the camera.

And it will be added to the NVR successfully.

Then you can go back to view the video.

Besides,you can watch this video if you don't want to read too much text;
