Applied to : C518 camera;Poe /nvr system;
If you want to connect the C518 camera to ZOSI Wireless NVR or Zosi Poe Nvr;Please note the camera and NVR must be connected to the same router(same network)
1 Connect the POE/NVR to the same Router through Ethernet cable.
2 And connect the Ipc camera to the same home network.
3 It's mainly the same network, so this camera will be able to map directly on the monitor.
1) Please try below 2 ways to add the camera firstly via the wireless connection.
NOTE: If the device is not added successfully, please reset the device by pressing the
device reset button for 5 seconds, and then add device again according to the above
2) If your app successfully adds a camera to the same home network, it can be directly mapped on the nvr, if it can't be mapped, it can be operated like this:

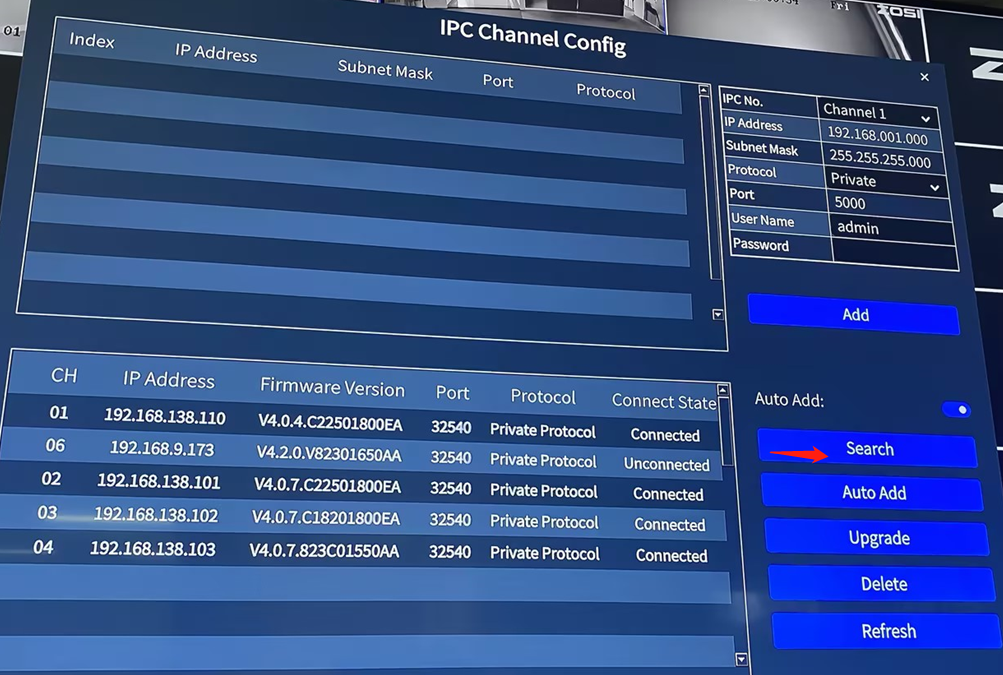

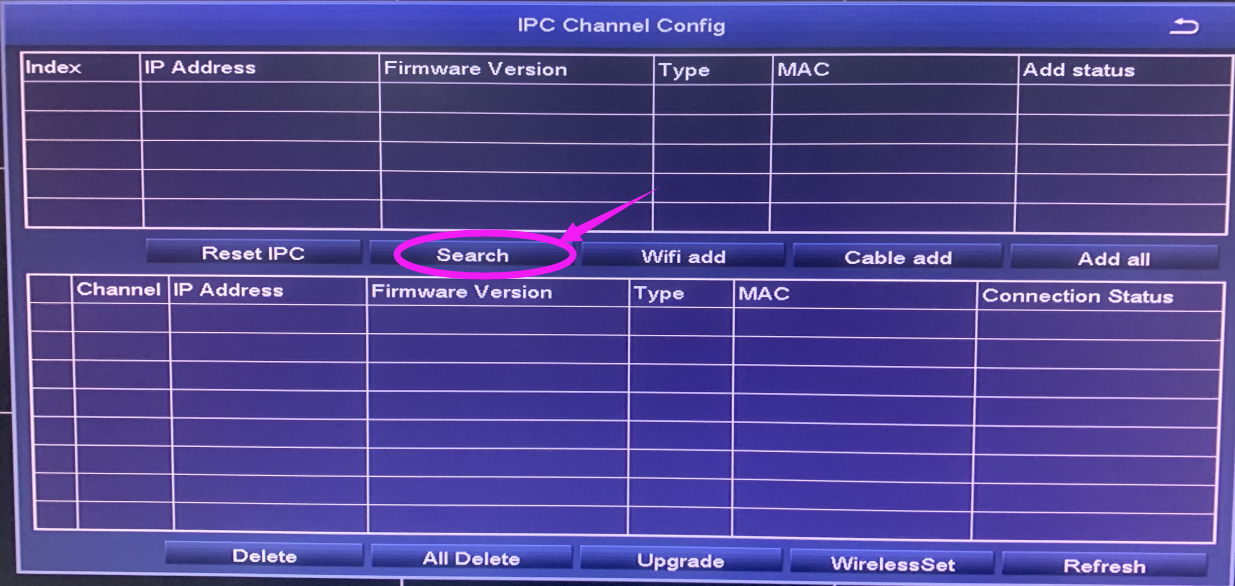

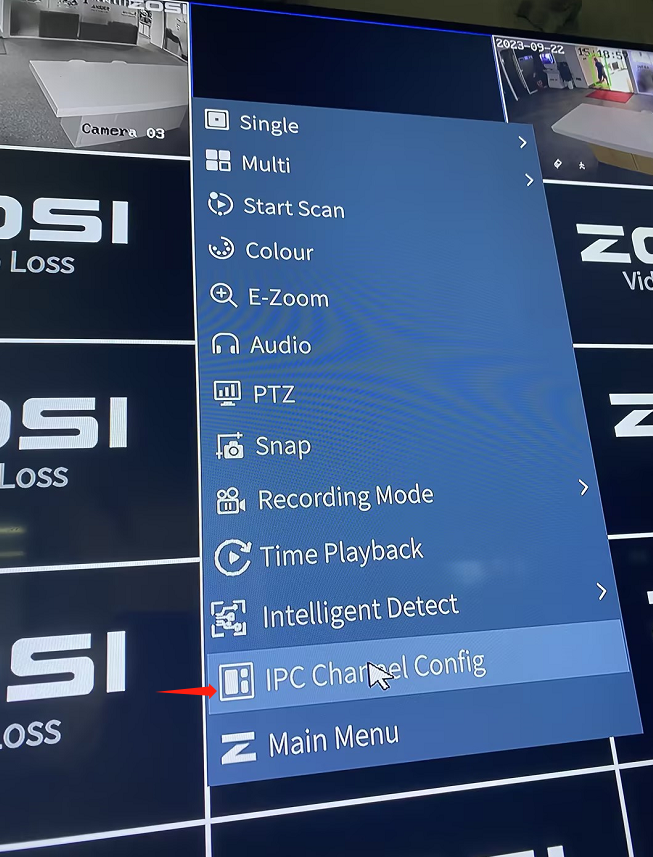

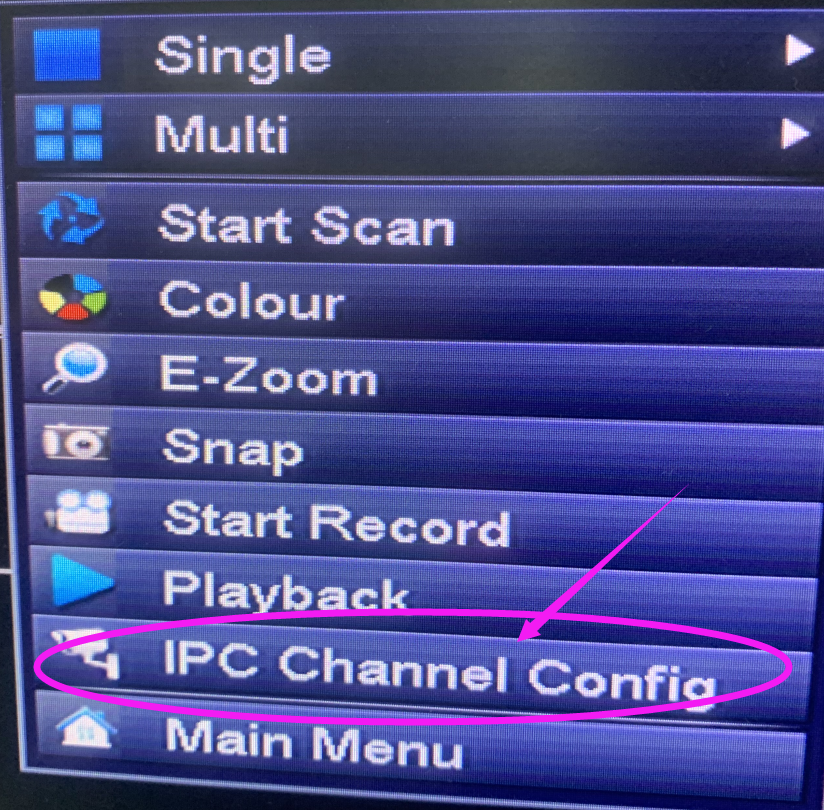

Step 1:Enter Poe/NVR's IPC Channel Config to click "Search" to find the camera.

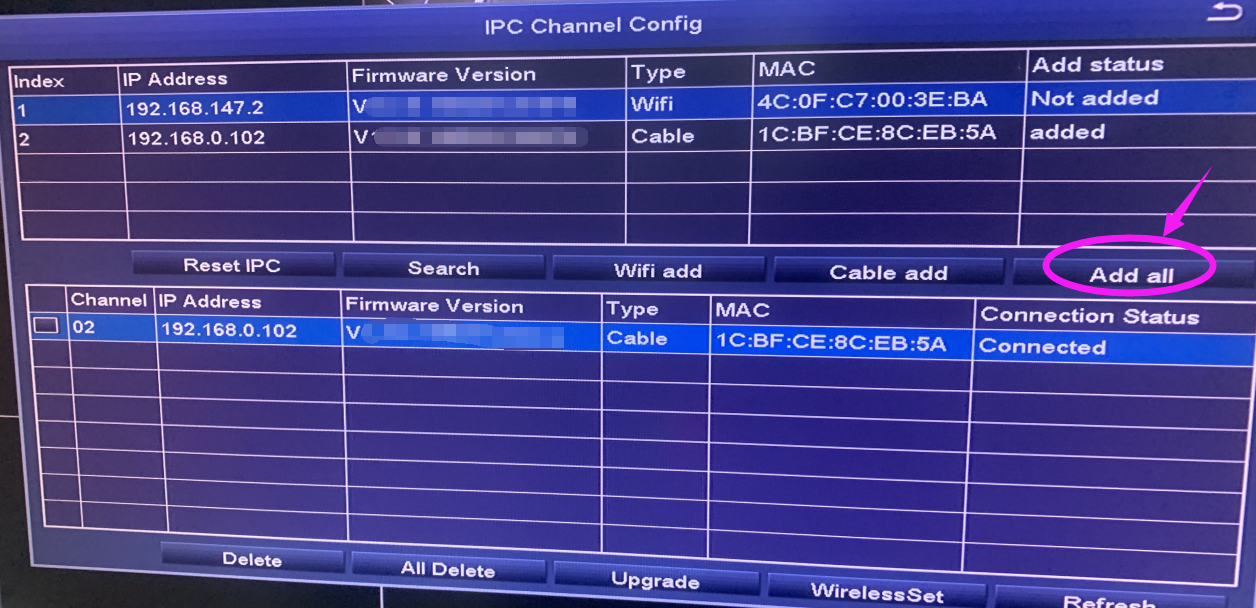

Step 2 After you find the camera, please click "Add all" to add the camera.
And it will be added to the POE/NVR successfully.

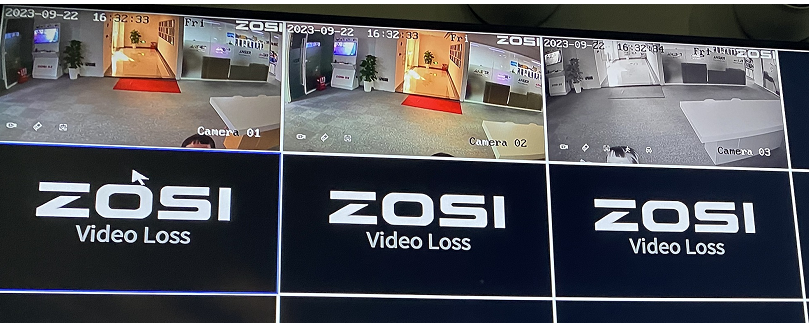

Finally you can view your cameras on this monitor.
