Applies to: ZOSI PoE System；

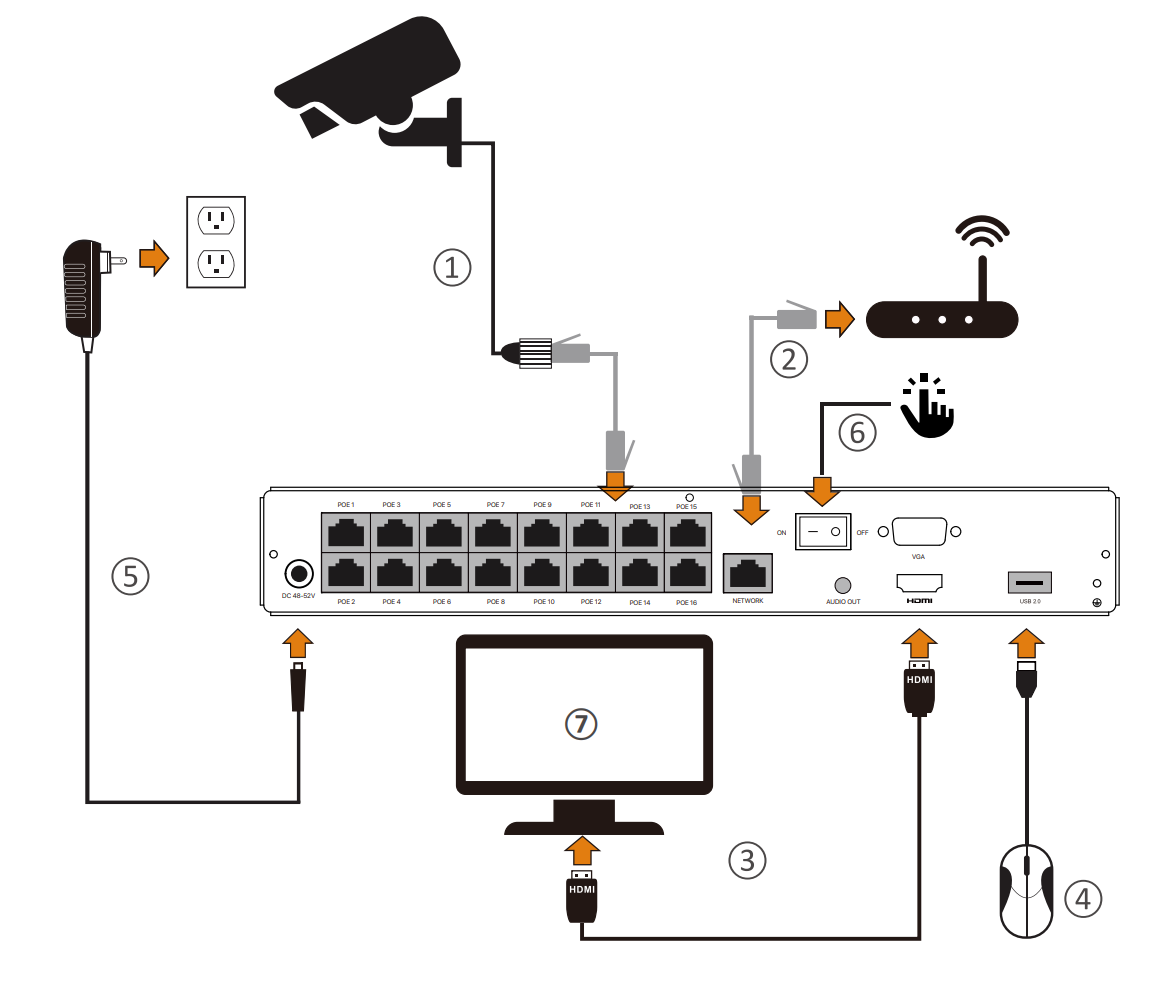

① Connect the Cameras to the PoE NVR with 60ft(18.3m) Ethernet Cable.
② Connect the PoE NVR to the Router with 3ft(1m) Ethernet Cable.
③ Connect the PoE NVR to the Monitor with VGA or HDMI Cable.
④ Connect the USB Mouse to the USB2.0 Port.
⑤ Connect the PoE NVR to the Power Outlet.
⑥ Turn on the power switch and enjoy live view.
⑦ The monitor will display live view of the camera.
NOTE: To ensure the device works properly, it is recommended to power on the PoE NVR first for testing before a final installation.

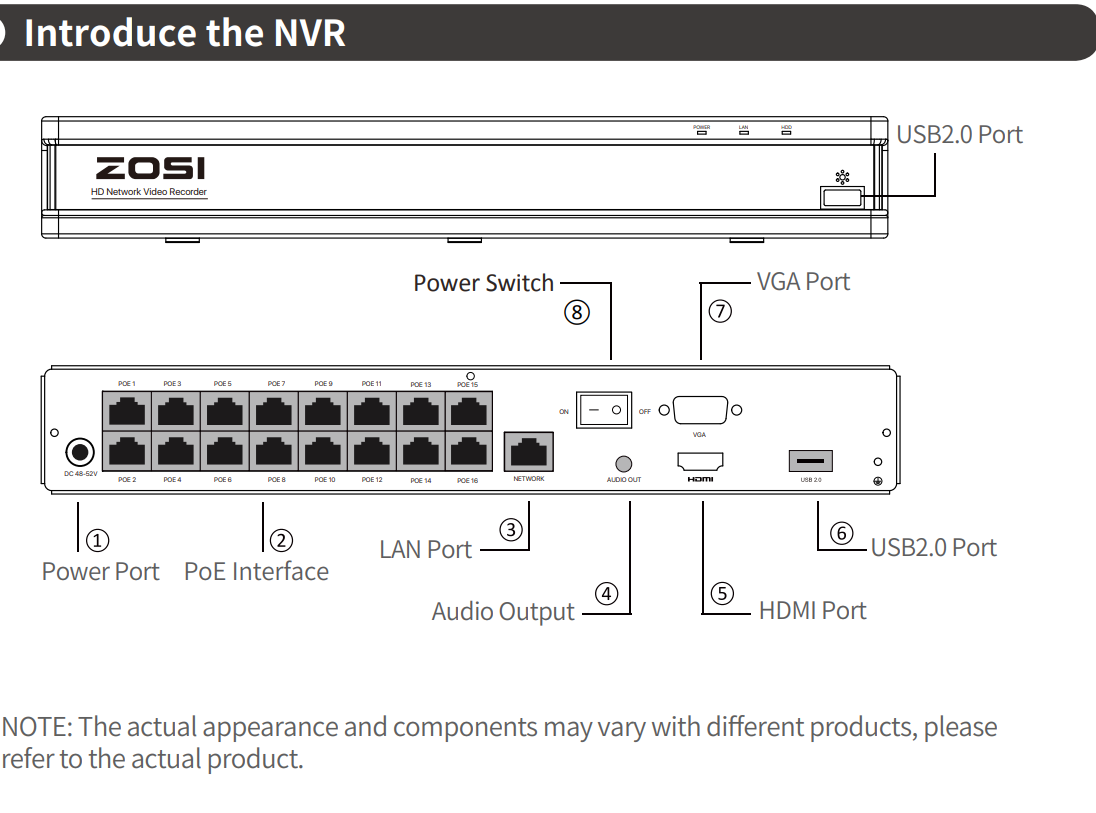

Attached is the detail User Manual for your reference.
https://ansjerfilemanager.s3.amazonaws.com/PoE+NVR_User_Manual_EN.pdf
More questions, please feel free to contact us.
