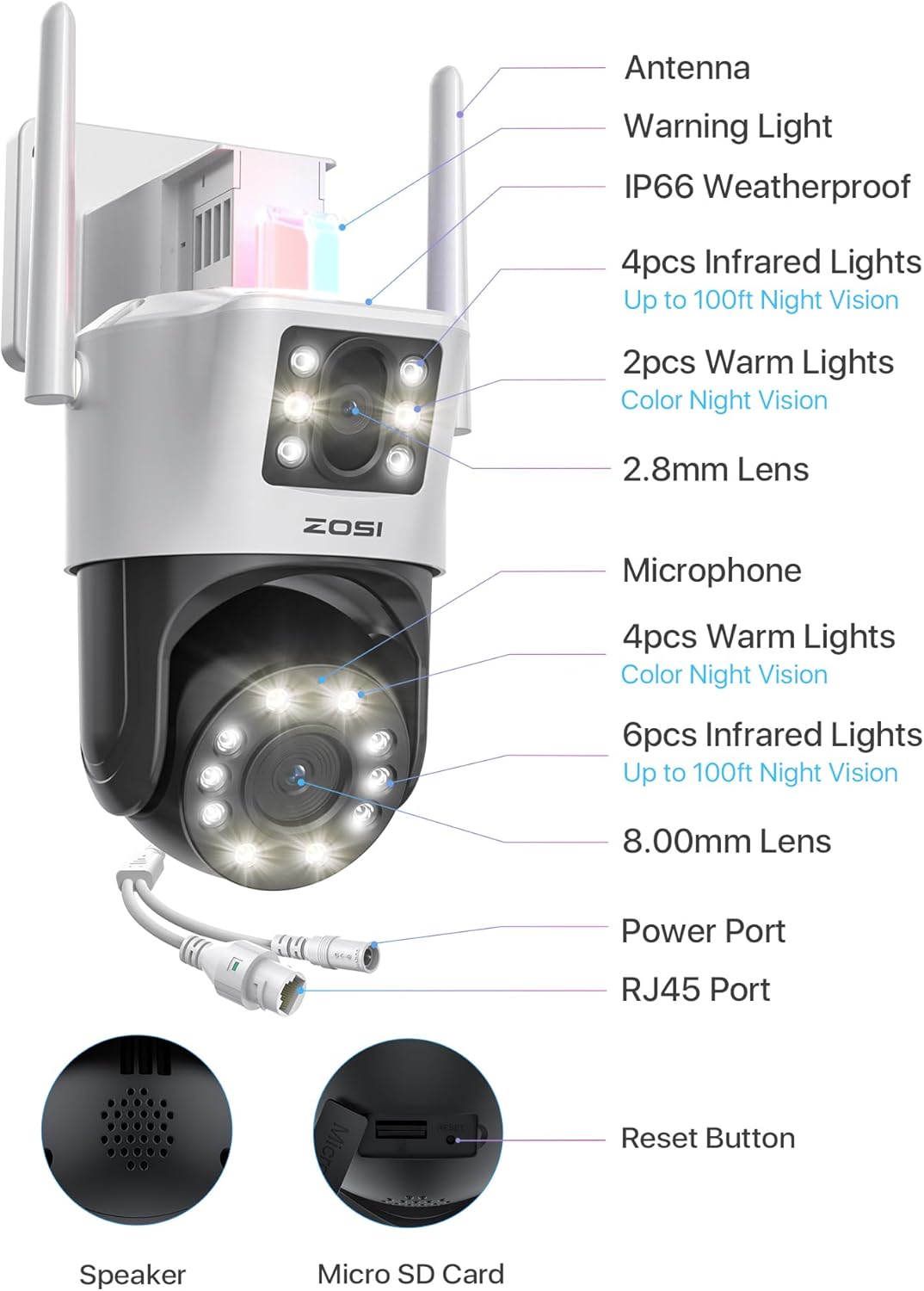

- Outdoor bullet-PTZ linkage camera
- Supports 2.4GHz WiFi
- Automatic human tracking, follows wherever you go
- Supports multiple AI detection modes, including motion, human shape, vehicle shape, and area detection
- Supports two-way audio intercom and sound-light alarm
- Effective audio pickup range of 5 meters
- Maximum infrared monitoring distance of 30 meters, supports full-color night vision
- Supports memory card and proprietary cloud storage technology
| Product Information | Name | C298 | C298 MAX (Supports 8X Hybrid Zoom) | C298 PRO | C298 SE |
| Product SKU | 1NC-2984D-US | 1NC-2988M-US | 1NC-2988D-US | 1NC-2986D-US | |
| Camera | Pixels | 2MP | 4MP+4MP | 4MP+4MP | 4MP/2MP |
Bullet Camera Lens |
Bullet Camera: 4mm@F2.0 |
Bullet Camera: 2.8mm@F1.6 | Bullet Camera: 4mm@F2.0 | Bullet Camera: 4mm@F2.0 | |
| Dome Camera Lens | Dome Camera: 4mm@F2.0 | Dome Camera: 8mm@F2.0 | Dome Camera: 4mm@F2.0 | Dome Camera: 4mm@F2.0 | |
| Image Sensor | 1/4" HD CMOS | 1/2.9" Progressive Scan CMOS | 1/2.9" Progressive Scan CMOS | 1/2.9" Progressive Scan CMOS | |
| Lighting | Bullet: 4 IR LEDs / Dome: 6 IR LEDs | Bullet: 4 IR LEDs / Dome: 6 IR LEDs | Bullet: 4 IR LEDs / Dome: 6 IR LEDs | Bullet: 4 IR LEDs / Dome: 6 IR LEDs | |
| Bullet: 2 Warm Lights Dome: 4 Warm Lights | Bullet: 2 Warm Lights Dome: 4 Warm Lights | Bullet: 2 Warm Lights Dome: 4 Warm Lights | Bullet: 2 Warm Lights Dome: 4 Warm Lights | ||
Field of View |
Bullet: Horizontal 57° | Bullet: Horizontal 110° | Bullet: Horizontal 90° | Bullet: Horizontal 90° | |
| Dome: Horizontal 57° | Dome: Horizontal 43° | Dome: Horizontal 90° | Dome: Horizontal 90° | ||
| Pan | Horizontal rotation angle: 270° | Horizontal rotation angle: 270° | Horizontal rotation angle: 270° | Horizontal rotation angle: 270° | |
| Tilt | Vertical rotation angle: 90° | Vertical rotation angle: 90° | Vertical rotation angle: 90° | Vertical rotation angle: 90° | |
| IR Wavelength | 850nm | 850nm | 850nm | 850nm | |
| IR Distance | 30m | 30m | 30m | 30m | |
| IR Cut Filter | ICR Filter Removable | ICR Filter Removable | ICR Filter Removable | ICR Filter Removable | |
| Image Enhancement | 3D Digital Noise Reduction | 3D Digital Noise Reduction | 3D Digital Noise Reduction | 3D Digital Noise Reduction | |
| Backlight Compensation | Yes | Yes | Yes | Yes | |
| strong Light Suppression | Yes | Yes | Yes | Yes | |
| Smart Algorithms | Motion Detection | Yes | Yes | Yes | Yes |
| Human Detection |
Yes | Yes | Yes | Yes | |
| Vehicle Detection | Yes | Yes | Yes | Yes | |
Area Detection |
Supports area intrusion detection | Supports area intrusion detection | Supports area intrusion detection | Supports area intrusion detection | |
| Supports area departure detection | Supports area departure detection | Supports area departure detection | Supports area departure detection | ||
| Supports no-person detection | Supports no-person detection | Supports no-person detection | Supports no-person detection | ||
| Supports entry/exit detection | Supports entry/exit detection | Supports entry/exit detection | Supports entry/exit detection | ||
| Supports loitering detection | Supports loitering detection | Supports loitering detection | Supports loitering detection | ||
| Interfaces/Buttons | Wired Network Interface | Yes | Yes | Yes | Yes |
| Storage/Recording | Supports Micro SD cards (up to 256GB) / cloud storage / NVR storage for recordings | Supports Micro SD cards (up to 256GB) / cloud storage / NVR storage for recordings | Supports Micro SD cards (up to 256GB) / cloud storage / NVR storage for recordings | Supports Micro SD cards (up to 256GB) / cloud storage / NVR storage for recordings | |
| Audio Input | Built-in high-sensitivity microphone | Built-in high-sensitivity microphone | Built-in high-sensitivity microphone | Built-in high-sensitivity microphone | |
| Audio Output | Built-in speaker | Built-in speaker | Built-in speaker | Built-in speaker | |
| Button | Reset button | Reset button | Reset button | Reset button | |
| Compression Standard | Video Compression | H.265 | H.265 | H.265 | H.265 |
| Image | Max Resolution | 1920×1080 | 2560×1440 | 2560×1440 | 2560×1440 |
| Frame Rate | 15fps | 15fps | 15fps | 15fps | |
| Image Settings | Supports HD/SD; Supports mirroring | Supports HD/SD; Supports mirroring | Supports HD/SD; Supports mirroring | Supports HD/SD; Supports mirroring | |
| Wi-Fi Module | Frequency Band | 2.4 GHz | 2.4 GHz | 2.4 GHz | 2.4 GHz |
| Bandwidth | Supports 20MHz | Supports 20MHz | Supports 20MHz | Supports 20MHz | |
| Bluetooth | Bluetooth V4.2/5.0 | Not supported | Not supported | Not supported | |
| Network Settings | Encryption | WEP, WPA/WPA2 | WEP, WPA/WPA2 | WEP, WPA/WPA2 | WEP, WPA/WPA2 |
| Network Setup Method | AP Hotspot Network / Bluetooth configuration | AP Hotspot Network | AP Hotspot Network | AP Hotspot Network | |
| Network Protocol | TCP/IP, HTTP, DHCP, DNS, MQTT, P2P, RTSP, Temporarily does not support ONVIF | TCP/IP, HTTP, DHCP, DNS, MQTT, P2P, RTSP, ONVIF | TCP/IP, HTTP, DHCP, DNS, MQTT, P2P, RTSP, ONVIF | TCP/IP, HTTP, DHCP, DNS, MQTT, P2P, RTSP, ONVIF | |
| Alexa | Dose not support Alexa | Compatible with Alexa | Compatible with Alexa | Compatible with Alexa | |
| General | Protection Level | IP66 | IP66 | IP66 | IP66 |
| Operating Temperature/Humidity | -20°C ~ 60°C, humidity ≤95% (non-condensing) | -20°C ~ 60°C, humidity ≤95% (non-condensing) | -20°C ~ 60°C, humidity ≤95% (non-condensing) | -20°C ~ 60°C, humidity ≤95% (non-condensing) | |
| Power Supply | DC12V/2A | DC12V/2A | DC12V/2A | DC12V/2A | |
| Dimensions | Wall-mounted: 260×150×180mm / Ceiling-mounted: 290×150×135mm | Wall-mounted: 260×150×180mm / Ceiling-mounted: 290×150×135mm | Wall-mounted: 260×150×180mm / Ceiling-mounted: 290×150×135mm | Wall-mounted: 260×150×180mm / Ceiling-mounted: 290×150×135mm | |
| Weight | 725g | 725g | 725g |
725g |
If you have any questions, please feel free to contact us.
