Applied to;C186A

Installation Precautions
• Do not face the camera to any light source.
• Do not point the camera at glass windows or reflective objects. Otherwise, it may result in poor image performance due to reflections from infrared LEDs, ambient lights or status lights.
• Do not mount the camera in shaded area, and point the camera towards a well-lit area. For better image quality, make sure the camera and the captured subject are at the same lighting conditions.
• It is recommended that the camera be installed as far away as possible from electronic devices such as microwaves, televisions, radio phones and baby monitors to prevent signal interference.
• It is recommended to clean the lens with a soft cloth from time to time.
• Do not expose the power port to water or moisture, or blocked by dirt or other things.
• Do not install the camera where rain and snow may hit the lens directly.
• Camera may work in extremely cold conditions as low as -10°C as it will produce heat when powered on.
You may power the camera indoors for a few minutes before installing it outdoors. (Only for outdoorcameras)

Mount the Camera to the Wall

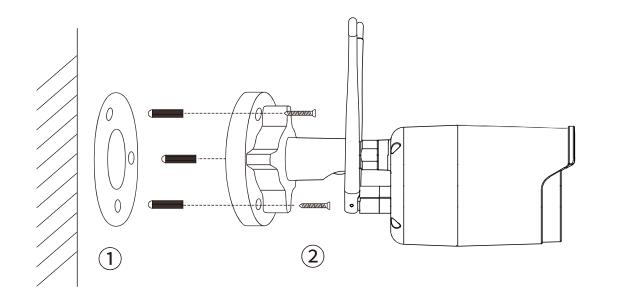

1. Drill holes according to the mounting template.
NOTE: Use the anchors included in the package if needed.

2. Attach the camera bracket with screws included in the package.
NOTE: Run the cables through the cable notch on the mounting base.

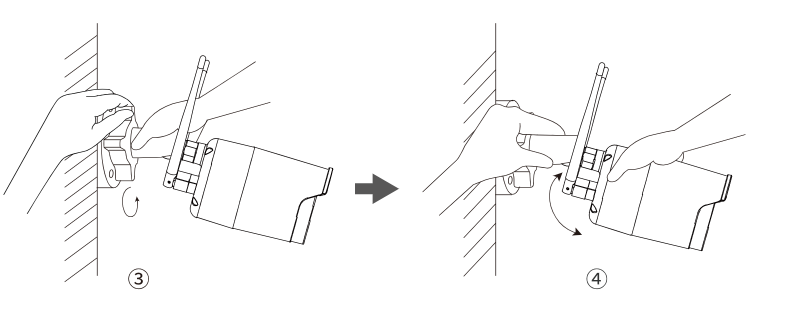

3. Loosen the knob and adjust the camera to a proper angle.
4. Twist the knob to secure the camera in place.

Installation Distance, Height and Angle
Distance: Best accuracy for objects within 5-50 ft (1.5-15 m).
Angle: Tilt the camera down about 30°-60° from the horizontal position.
Height: Install the camera 8-16 ft (2.5-5m) above the ground.

NOTE: The accuracy of human detection will be affected by various factors, such as the distance between
the person and the camera, the height of the person, the height and angle of the camera, etc. The
accuracy and distance of detection will also be affected in the night vision environment.
