ZOSI 2K Spotlight Wireless Security Camera System with Two-Way Audio, 8CH 3MP CCTV NVR

Mobile APP: Zosi Smart

AVSS for PC:
https://support.zositech.com/hc/en-us/articles/360003788292-Win-Client-AVSS

AVSS for Macbook:
https://support.zositech.com/hc/en-us/articles/360006691912-Mac-Client-AVSS

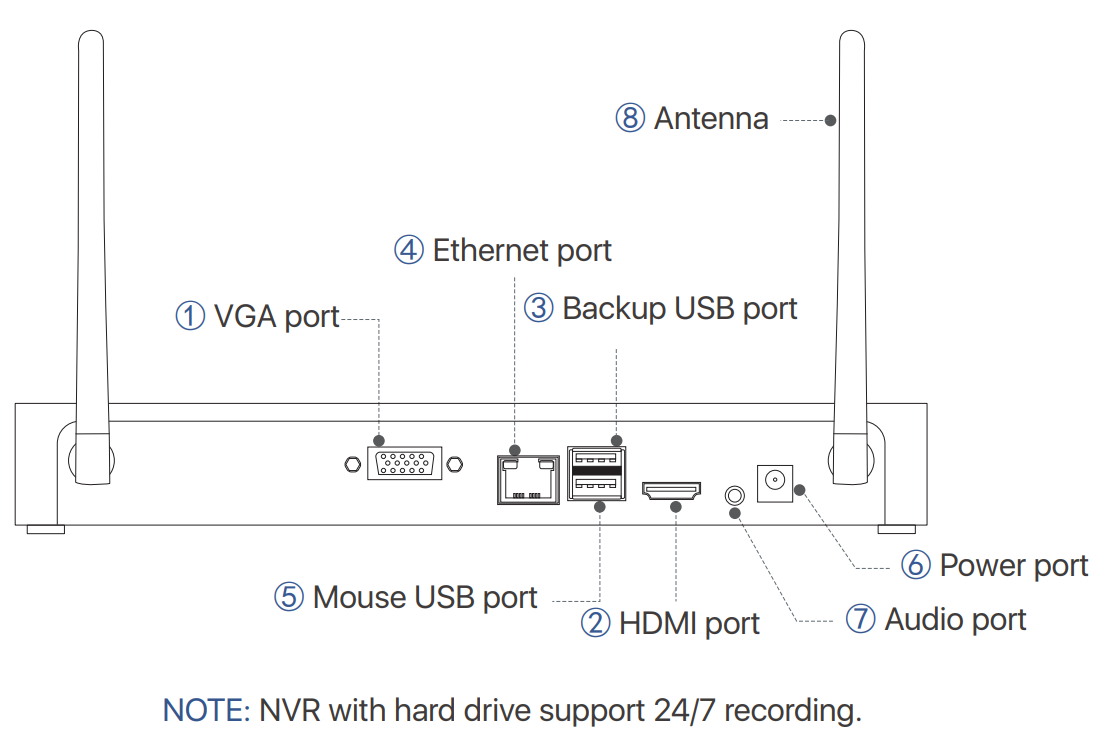

Network Video Recorder

① VGA port: connect monitor with VGA port to NVR via VGA cable
② HDMI port: connect monitor with HDMI port to NVR via HDMI cable
③ Backup USB port: insert USB drive for backup or system upgrade
④ Ethernet port: connect router or switch to NVR via Ethernet cable
⑤ Mouse USB port: connect to mouse
⑥ Power port: connect to power supply
⑦ Audio port: audio signal output
⑧ Antenna: transmit wireless signal

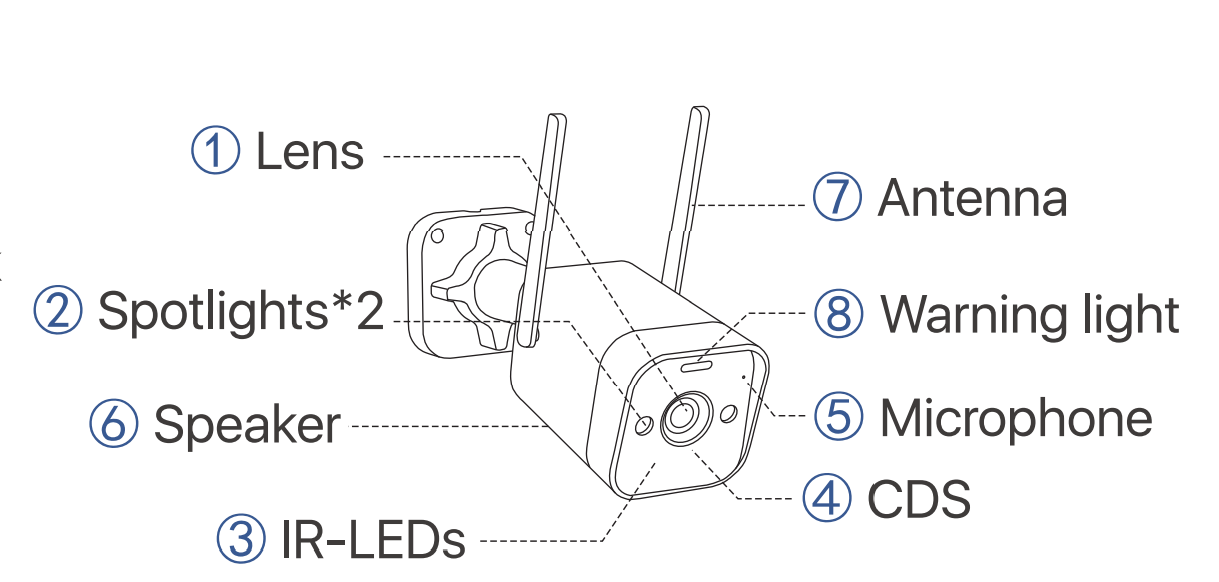

Camera
① Lens: capture image and video
② Spotlights: illumination and light alarm
③ IR-LEDs: provide night vision in dark
environment
④ CDS: day and night auto switch
⑤ Microphone: for voice intercom
⑥ Speaker: for voice intercom and voice alarm
⑦ Antenna: transmit wireless signal
⑧ Warning light: It lights up when the camera is turned on. The warning light alarm can
be turned off on Siren-Light Alarm NVR interface
