Applied to C291 Battery camera;

NOTE:

Set up the network and add the camera to the App before installing the camera.

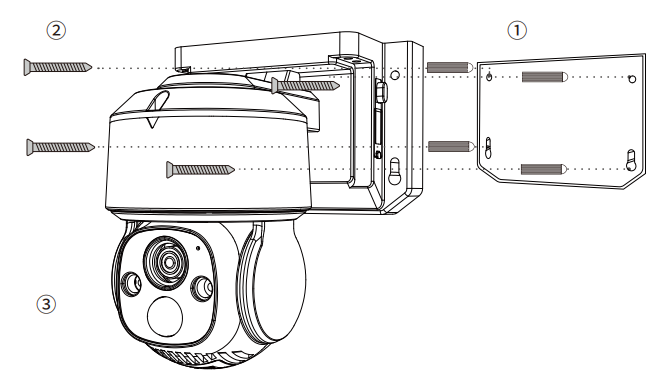

A: Mount the Camera to the Wall

1. Drill holes according to the mounting template and insert the anchors.

2. Install the mount base with screws.

3. To adjust the camera direction, you may control the camera to pan and tilt via Zosi App or Client.

B:Mount the Camera to the Ceiling

1. Drill holes according to the mounting template and insert the anchors.

2. Install the mount base with screws.

3. To adjust the camera direction, you may control the camera to pan and tilt via Zosi App or Client

Please note that :

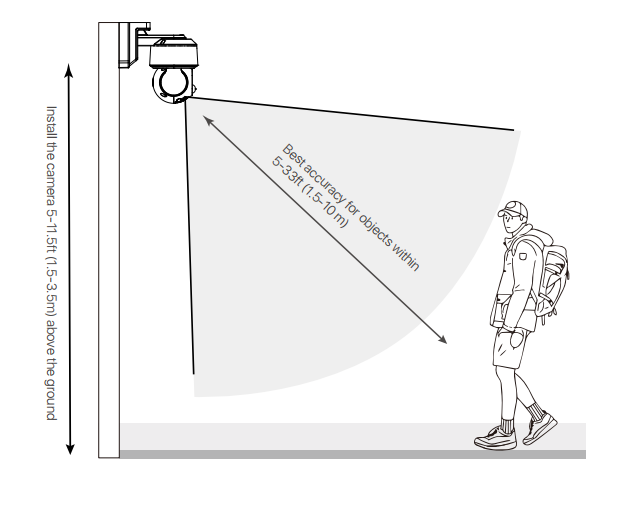

Installation Distance, Height and Angle

Distance: Best accuracy for objects within 5-33ft (1.5-10 m). Angle: Tilt the camera down about 30°-60° from the horizontal position. Height: Install the camera 5-11.5ft (1.5-3.5m) above the ground.

Installation Precautions

• Do not face the camera to any light source.

• Do not point the camera at glass windows or reflective objects. Otherwise, it may result in poor image performance due to reflections from infrared LEDs, ambient lights or status lights.

• Do not mount the camera in shaded area, and point the camera towards a well-lit area. For better image quality, make sure the camera and the captured subject are at the same lighting conditions.

• It is recommended that the camera be installed as far away as possible from electronic devices such as microwaves, televisions, radio phones and baby monitors to prevent signal interference.

• It is recommended to clean the lens with a soft cloth from time to time. Do not expose the power port to water or moisture, or blocked by dirt or other things.

• Camera may work in extremely cold conditions as low as -20°C as it will produce heat when powered on. You may power the camera indoors for a few minutes before installing it outdoors. (Only for outdoor cameras)

More questions, please contact us.

.
