Wifi Setting: This function only works for the following models of DVRs:

4-Channel DVRs:

ZR04ZN;   ZR04ZM;   ZR04FN;   ZR04FM;   ZR04CN;   ZR04CM;   ZR04JM;  ZR04VN;   ZR04VM;  ZR04TN;  ZR04UN;  ZR04MS10;  ZR04JS00;

8-Channel DVRs:

ZR08ZN;   ZR08ZM;  ZR08FN;   ZR08FM;   ZR08JM;  ZR08JN;  ZR08BN;  ZR08BM;   ZR08CN;  ZR08CM;  ZR08KS;  ZR08MN;  ZR08WN;  ZR08VN;  ZR08VM;  ZR08VU;   ZR08AU;  ZR08AR;  ZR08TN;  ZR08MS10;  ZR08KS10;

16-Channel DVRs:

ZR16ZK;  ZR16CK;  ZR16WK;  ZR16FK;

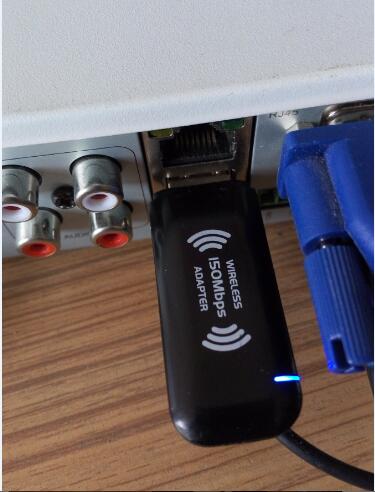

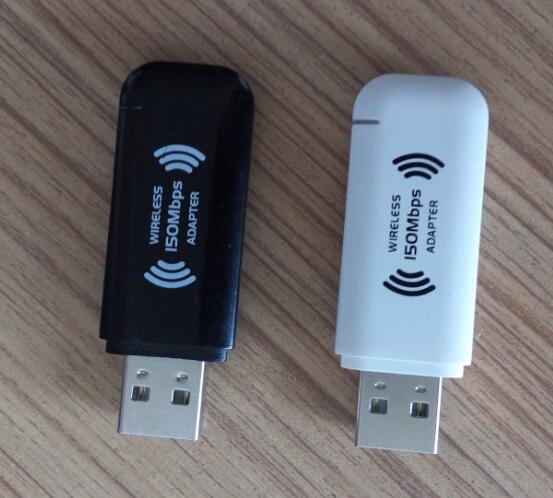

Remark: Our DVR only can be compatible for RT3070 or RT5370 Wifi module as picture:

Connection: Plug RT3070 or RT5370 Wifi module into the USB2.0 interface.

NOTE: The USB port in front panel and the second USB port in rear panel are exactly same one port, which means this port just be put in two position for convenience.

So, when you use the USB in front panel, the second USB in rear panel will be noneffective.

Operation Steps:

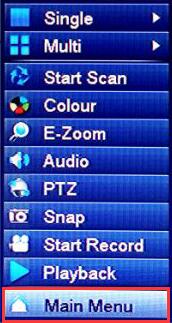

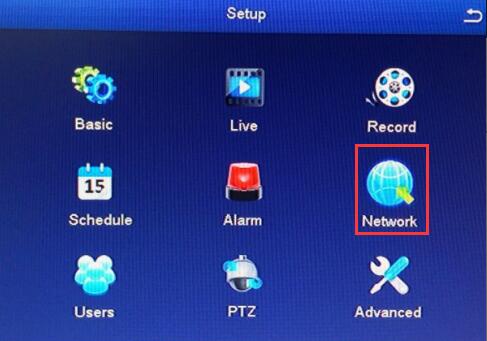

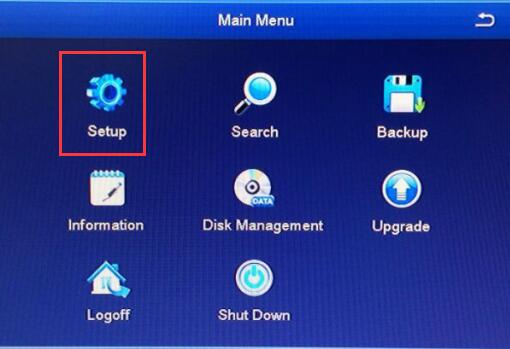

Step 1: Open the desk menu by right-click → set up → Network

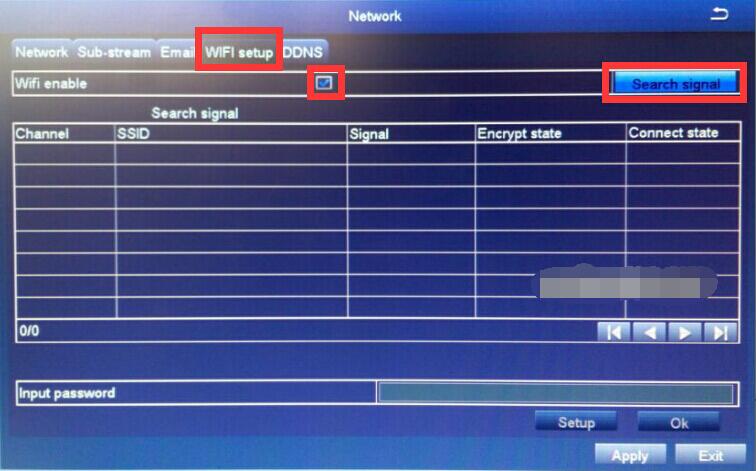

Step 2: Choose the WIFI set up

Step 3: Tick the “wifi enable”

Step 4: Click the “Search signal” button to search wifi

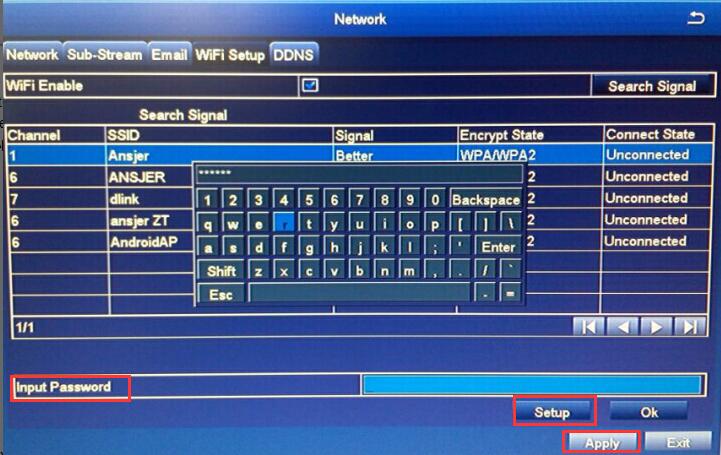

Step 5: Then input the wifi password you have searched

Step 6: Click the “set up” button

Step 7: Click the “Apply” button

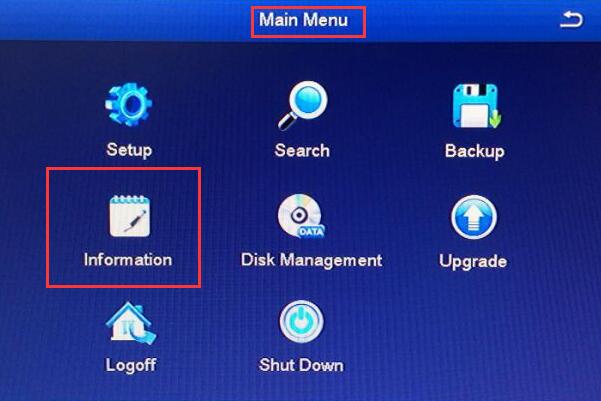

Step 8: Click the “Exit” button to exit the window, it will be displayed in warning window, click “ok” and back to the Main menu.

Step 9: When you finish all those steps, click the “information” button

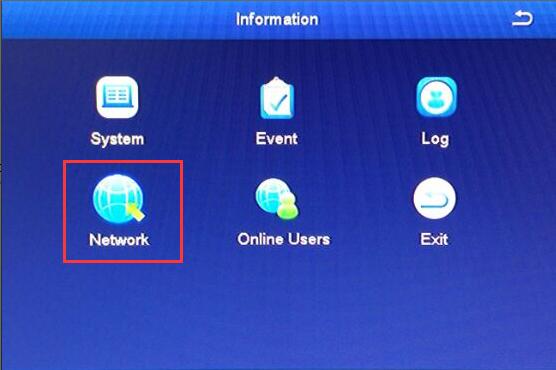

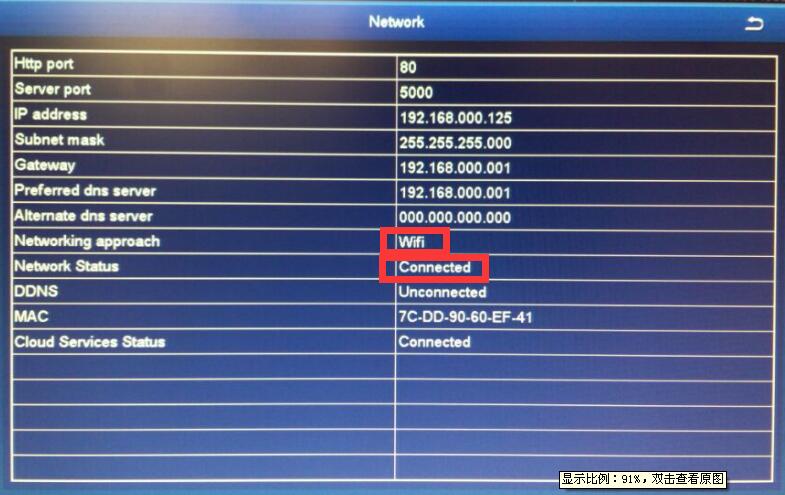

Step 10: Click the “network” button to check the Internet is OK.

Please feel free to contact us if you have any questions.
