Applies to: Zosi C190 camera and ZR08EN / ZR08DN / ZR16DK /ZR08PM/ZR08UN/ZR08DM/ZR08DQ/ZR16DB/ZR08SN/ZR16SK POE NVR System.

In fact, you can use the wireless camera C190 separately.

If you want to connect the C190 camera to ZOSI POE NVR: ZR08EN / ZR08DN / ZR16DK and others model systems, the camera and POE NVR must be connected to the same router;

If you have ZR08DN / ZR16DK Model System,please note that you should have the correct steps for how to add the camera to the Poe Nvr.

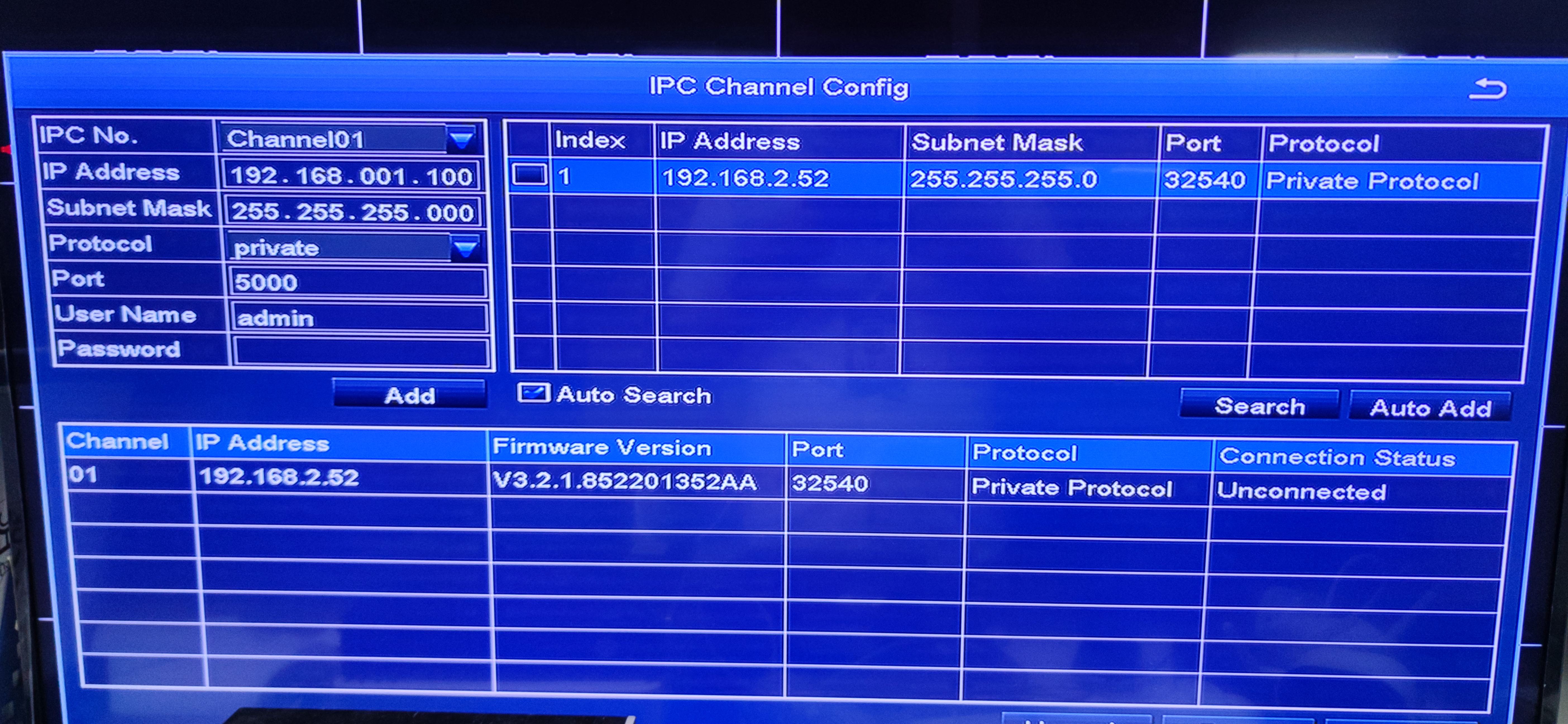

 Step 1 ，Connect the net cable to the POE port, click Search. Generally, a new ip address will pop up and you can easily find it. If not, try to contact our agents for the upgrade file to upgrade your the POE Box. Please note that this one unconnected image will not be displayed.

Step 2, Plug the net code into the NVR external network port, the video will be viewed.

There are two ways to connect C190 camera to these POE NVRs:Wireless Connection and Wired Connection.

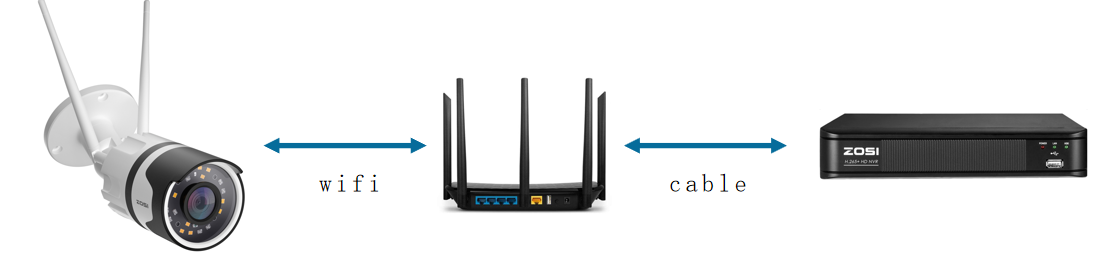

Method 1:  Wireless Connection

1)Power on the camera, wait about 20 seconds to start, it gives out "device is waiting

for connection". After smartphone is connected to WiFi, log in ZOSI Smart App and go

to the "Device" page, tap the "+" in the bottom middle to Add device.

2)Select Camera C190.

3) Tap the "Scan QR Code" and scan the QR code on device or tap "Enter device UID

by manual", enter the device UID and confirm.

4) On the Device Information page, enter the device name and click "Add an

unconnected device", confirm.

5) Setting WiFi for the device on the "Connect to WiFi" page. Tap "Next" and then tap

"Hear the tone" on the "Power On" page.

6) Tap "Scan QR Code" and align the QR code generated on smartphone with the

camera lens for scanning.

7)Camera make a click sound, and you will hear "Wireless configuration successful"

"WiFi is connecting, please wait" and after hearing "Wireless connection succeeds",

tap "Next" and "Confirm" in the pop-up box. Tap "Done" on the "Device Added

successfully" page.

NOTE: If the device is not added successfully, please reset the device by pressing the

device reset button for 5 seconds, and then add device again according to the above

steps.

8) Connect the NVR to the same Router through Ethernet cable.

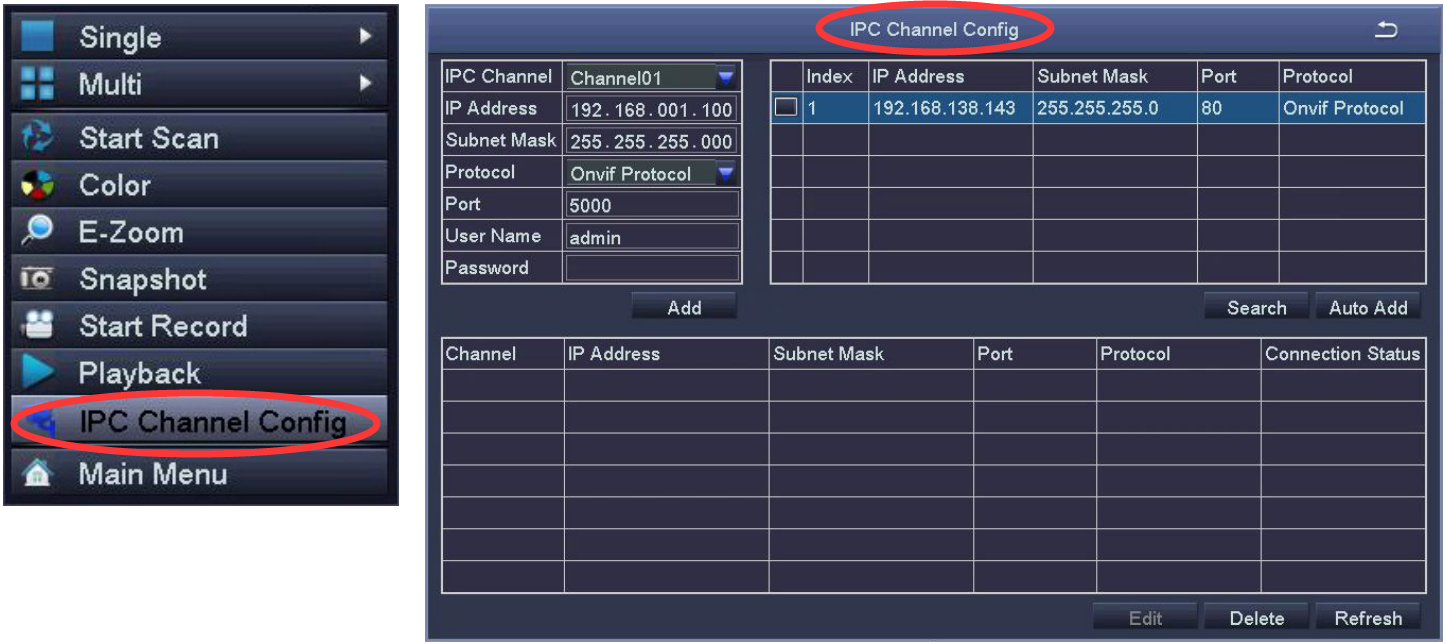

Enter NVR's IPC Channel Config to click "Search" to find the camera.

9) After you find the camera, please click "Add all" to add the camera.

And it will be added to the NVR successfully.

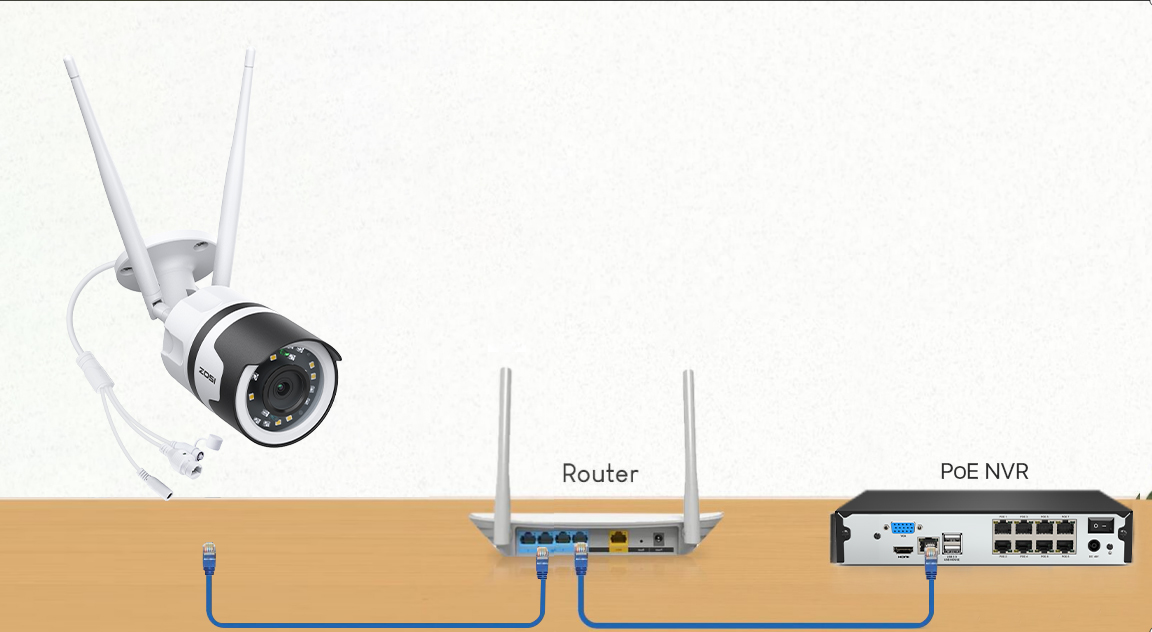

Method 2:  Wired Connection

1) Connect the wireless camera with power adapter(12V-1A). Make sure your C190 camera and zosi POE NVR system are connected to the same Router through Lan cables, so the two devices will be in the same network.

2) Reset the camera by holding on the reset button for 5 seconds then you can hear crisp switch voice from the switcher inside the camera:reset successfully,waiting to connect .

3) Enter NVR's IPC Channel Config to click "Search" to find the camera.

4) After you find the camera, please click "Add all" to add the camera.

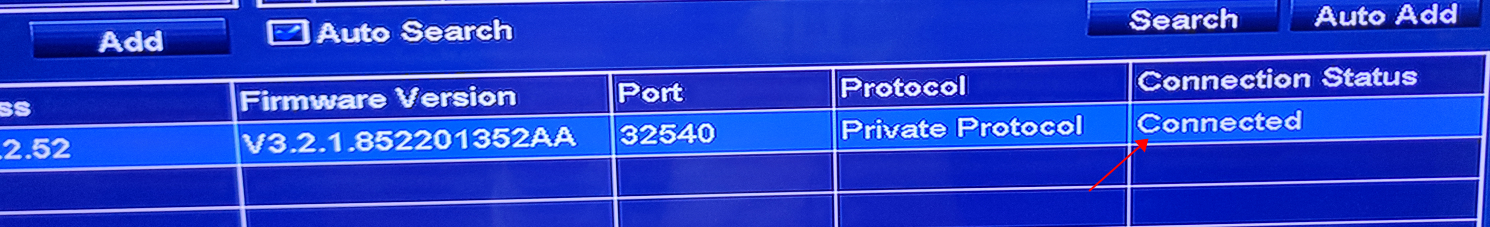

And it will be added to the NVR successfully.

Then you can go back to view the video.

Besides,you can watch this video if you don't want to read too much text;
