In fact, you can use the wireless camera 1NB-2622MW-W (C199) separately.
You can follow up the guide below to connect the camera:
If you want to connect the wireless camera 1NB-2622MW-W (C199) to your ZR08DP wireless NVR system, you can only connect the camera to the NVR through the Ethernet cable, it does not support wireless connection to the NVR system.
You can follow up the steps below to connect the camera to your NVR system:

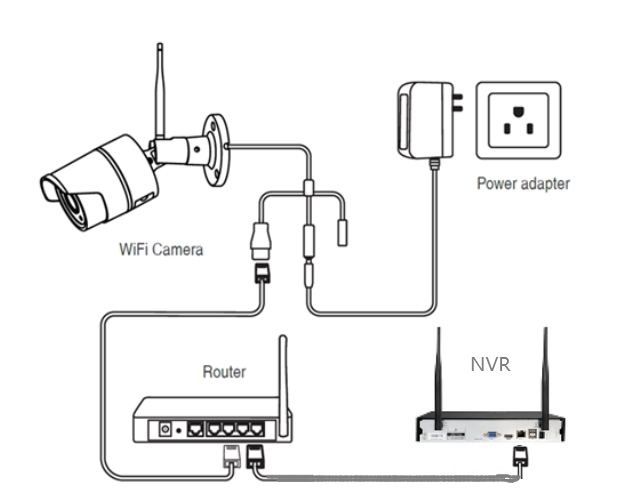

1) Connect the wireless camera 1NB-2622MW-W (C199) with power adapter(12V-1A). Also, connect the camera and your NVR system to the same wireless router through Ethernet cables, so the two devices will be in LAN automatically.

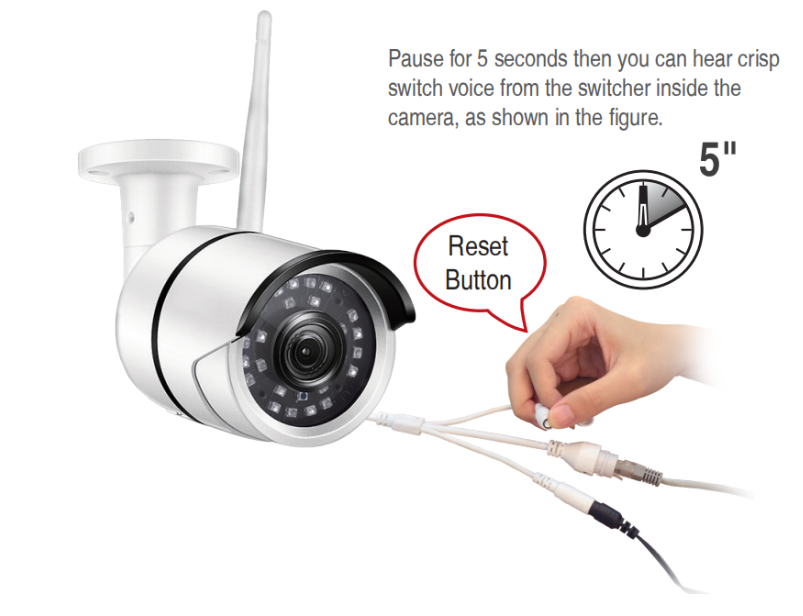

2) Reset the camera by holding on the reset button for 5 seconds then you can hear crisp switch voice from the switcher inside the camera.

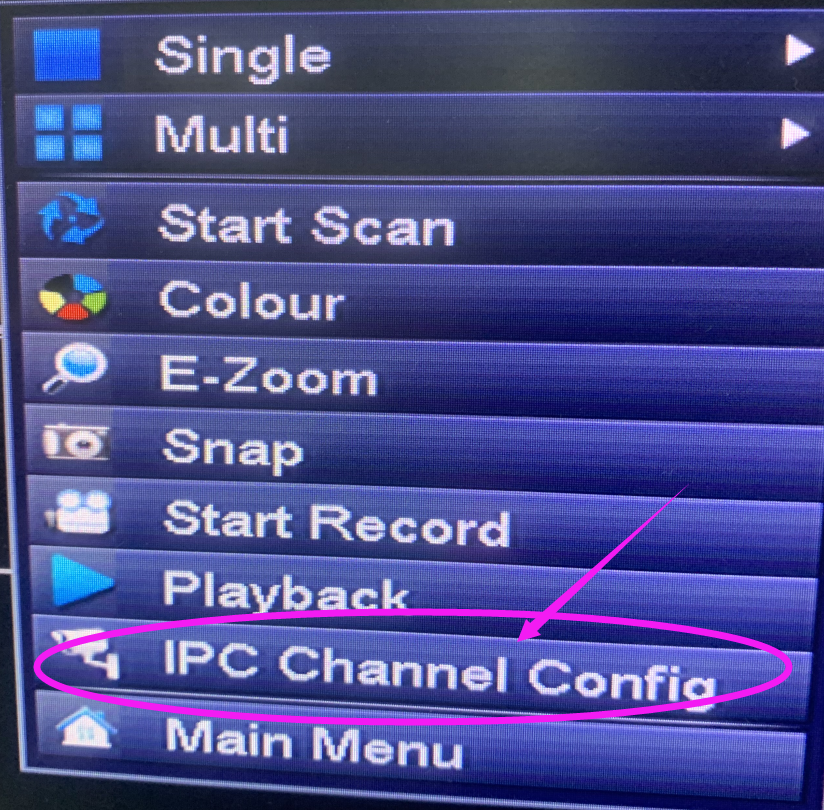

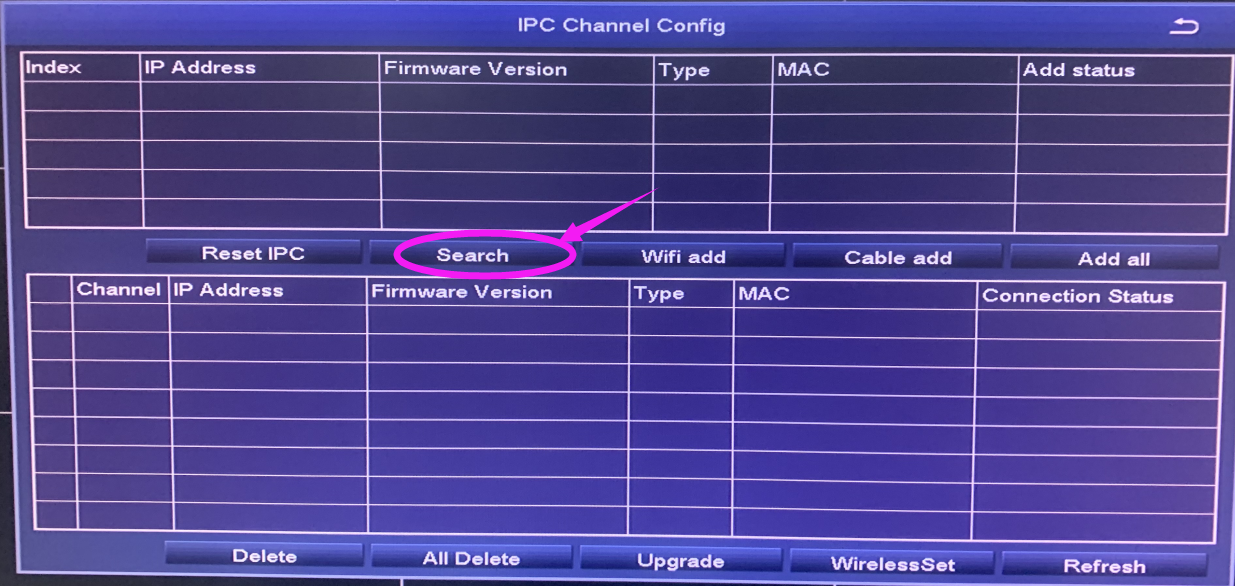

3) Enter NVR's IPC Channel Config to click "Search" to find the camera.

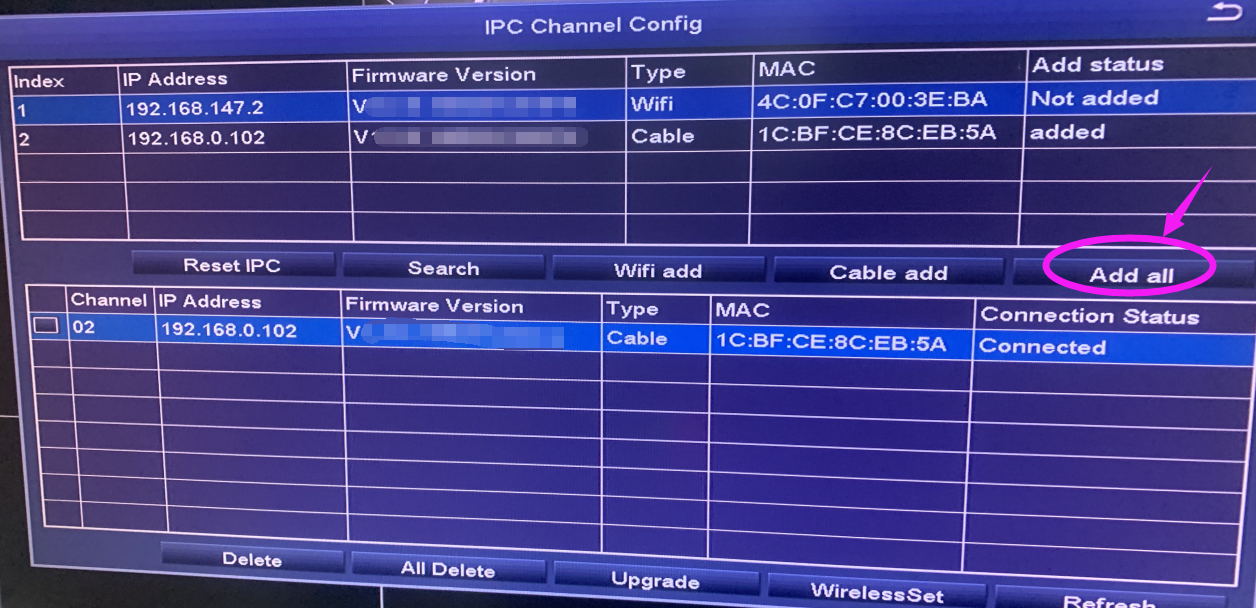

After you find the camera, please click "Add all" to add the camera.
If you directly connect the camera to the NVR through the network cable, please make sure the camera and NVR system are on the same network segment.

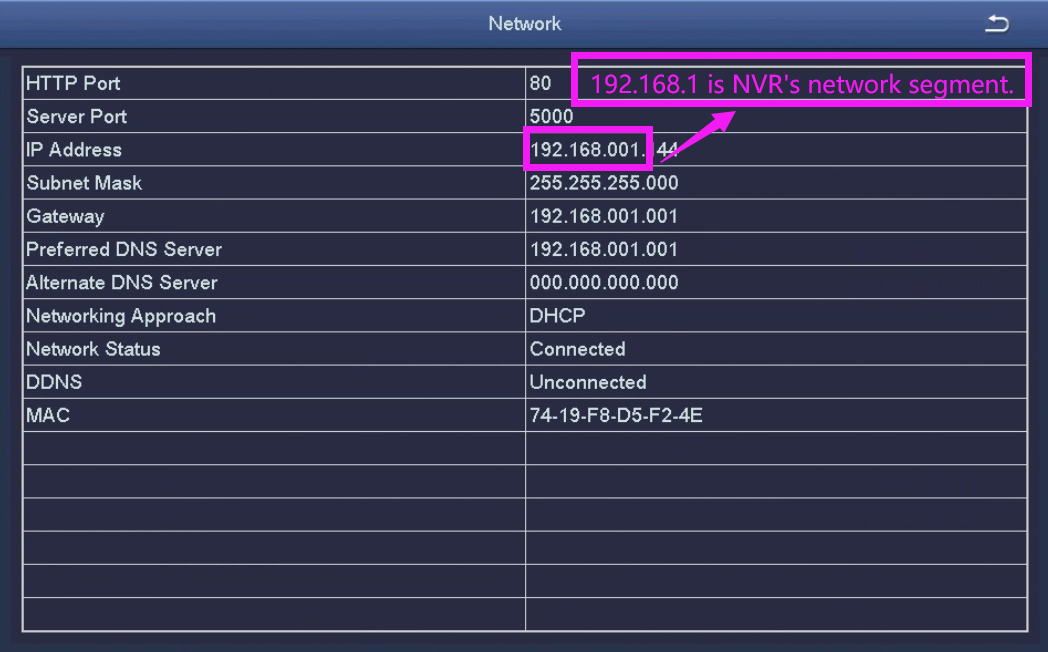

A. You can find the NVR's IP address from Main Menu > Information > Network.
B. You can follow up the guide below to find the camera's IP address. If it has different network segment with NVR's, please change the camera's IP address.
