Applies to: Zosi 4-in-1 Security Dome Camera

AVSS for PC:
https://support.zositech.com/hc/en-us/articles/360003788292-Win-Client-AVSS

AVSS for Macbook:

https://support.zositech.com/hc/en-us/articles/360006691912-Mac-Client-AVSS

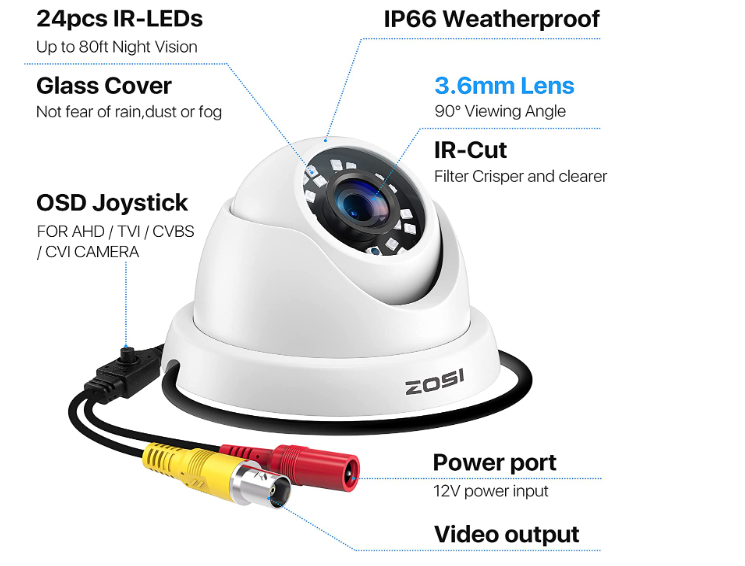

1. Camera Composition:

2. Camera Parameters:

Camera:

Image Sensor: 1/3〞CMOS CMOS with IR-Cut.

Lens: 3.6mm

Image:

Active Pixels: 1920(H)×1080(V).

Grid function:

IR LEDs Amount: 24pcs, 5mm LEDs
IR Distance: up to 80ft.
Viewing angle:90 degree
Weather - Resistant
Singal mode: TVI / AHD / CVI / CVBS 960H.

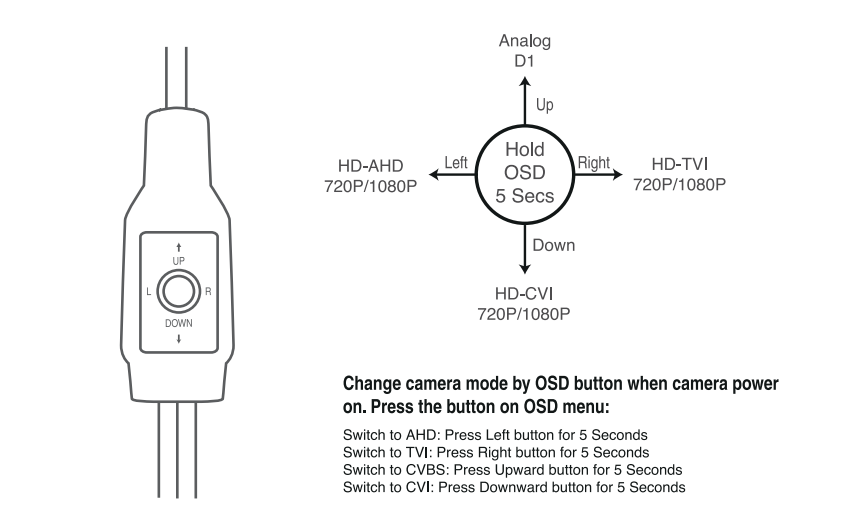

Press OSD joystick to switch the output mode:

Default / UP for 5 seconds: CVBS 960H
Right for 5 seconds: TVI
Down for 5 seconds: CVI
Left for 5 seconds: AHD

Noted:

This is a wired security camera, and it could be the additional or replacement camera for the wired security system.

You can download the manual in English, French, Deutsch, Dutch, Italian, Russian and Spanish language from the attachment.

Please let us know if you have any questions.
