Applies to: Zosi ZG2322M IP Cameras ；Zosi 2893M IP Cameras ;Zosi 3023A IP Cameras ;;
They can be added to ZR08JP/ZR08LL/ ZR08RP NVR;
Power the camera on,Connect NVR,Camera and Router via the lan cable,The cabling for NVR is shown as below.
Note: Make sure all the IP cameras you want to add to the NVR are connected to the same network (LAN) as the NVR. Otherwise, the cameras won’t be shown on the scanned list and cannot be automatically added to the NVR.
1) You may then follow the steps below to add the ZG2322M-W cameras to the ZR08JP NVR;
- Right-click on the screen, the operation menu appears.

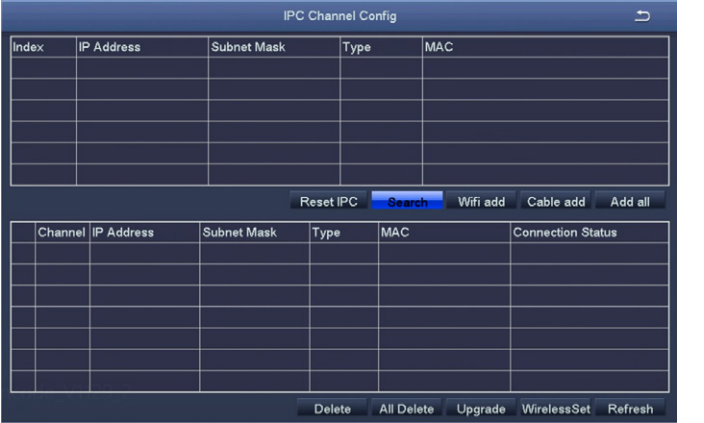

Select the IPC Channel Configuration and click the Search button on the IPC Channel Configpage.

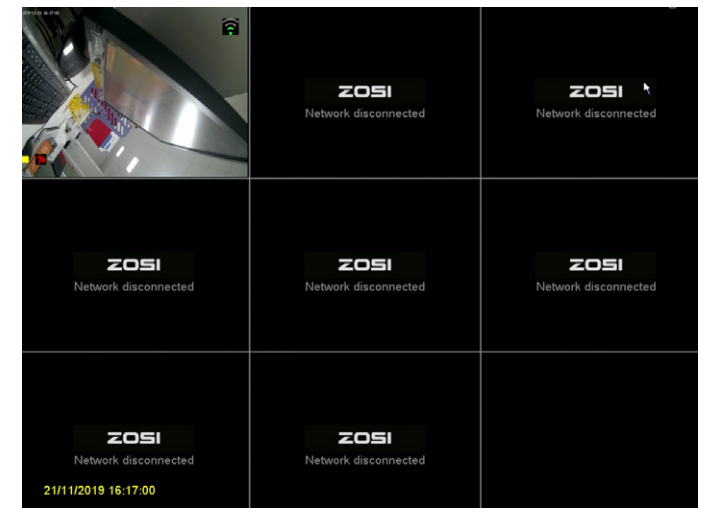

Double click IPC device that searched out, the status of IPC connected displays at the bottom of the page, and image displays on the related channel.
Select Add all,and it will show Connected which it means the good connection ,otherwise ,it will show unconnected status.
2) Disconnect the Ethernet cable between the camera and the NVR, and connect the NVR and the Router via the Ethernet cable (Only connect the NVR to network).
Note: This camera is only compatible with ZOSI NVR.
