Applies to: Zosi  ZG2320M-W IP Cameras

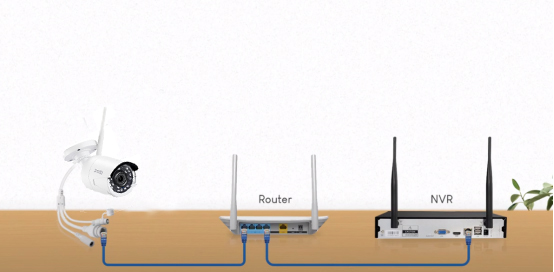

Power the camera on,Connect NVR,Camera and Router via the lan cable,The cabling for  NVR is shown as below.

Note: Make sure all the IP cameras you want to add to the NVR are connected to the same network (LAN) as the NVR. Otherwise, the cameras won’t be shown on the scanned list and cannot be automatically added to the NVR.

1) You may then follow the steps below to add the ZG2320M-W cameras to the ZR08DP NVR;

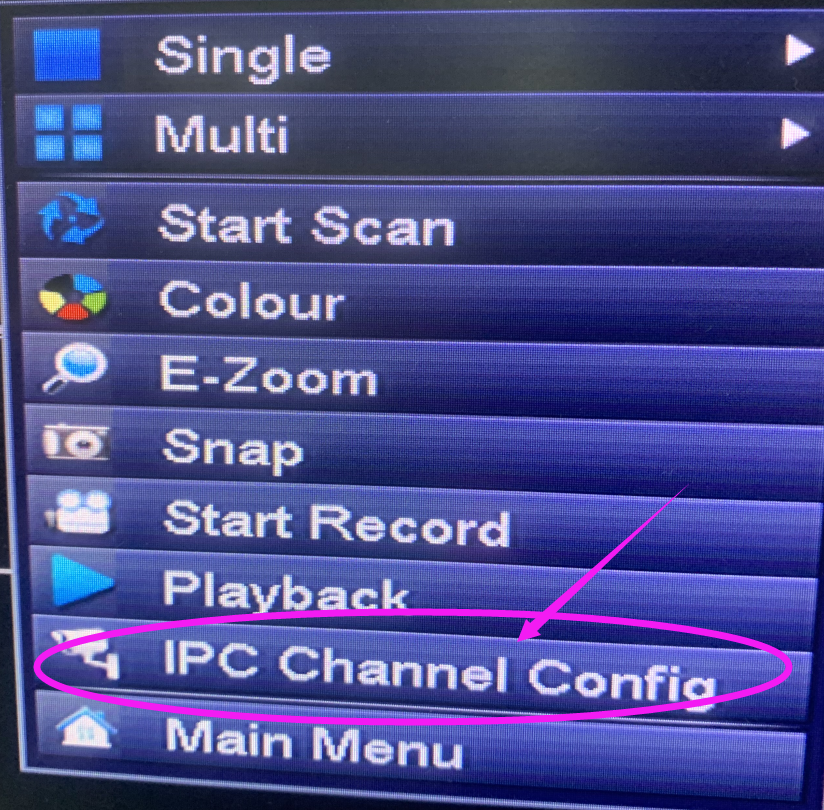

1. Right-click on the screen, the operation menu appears.

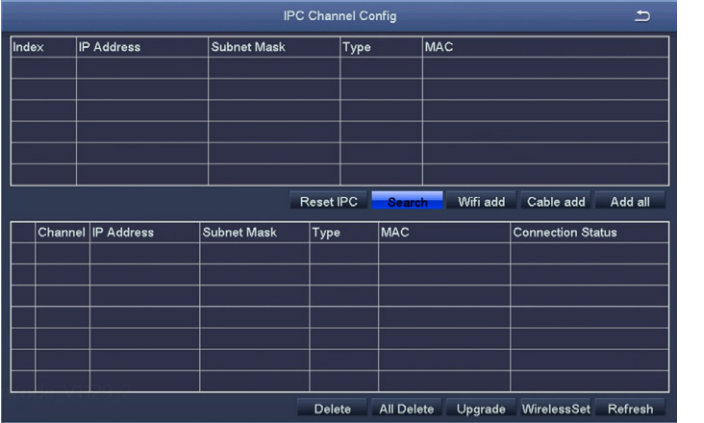

2. Select the IPC Channel Configuration and click the Search button on the IPC Channel Configpage.

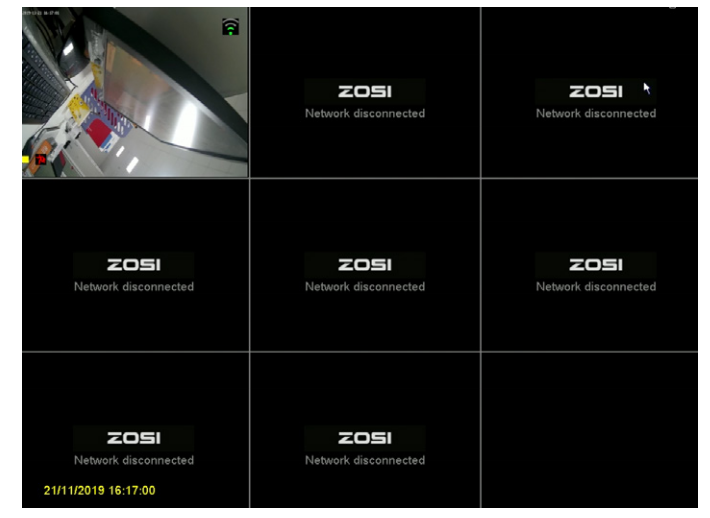

3. Double click IPC device that searched out, the status of IPC connected displays at the bottom of the page, and image displays on the related channel.

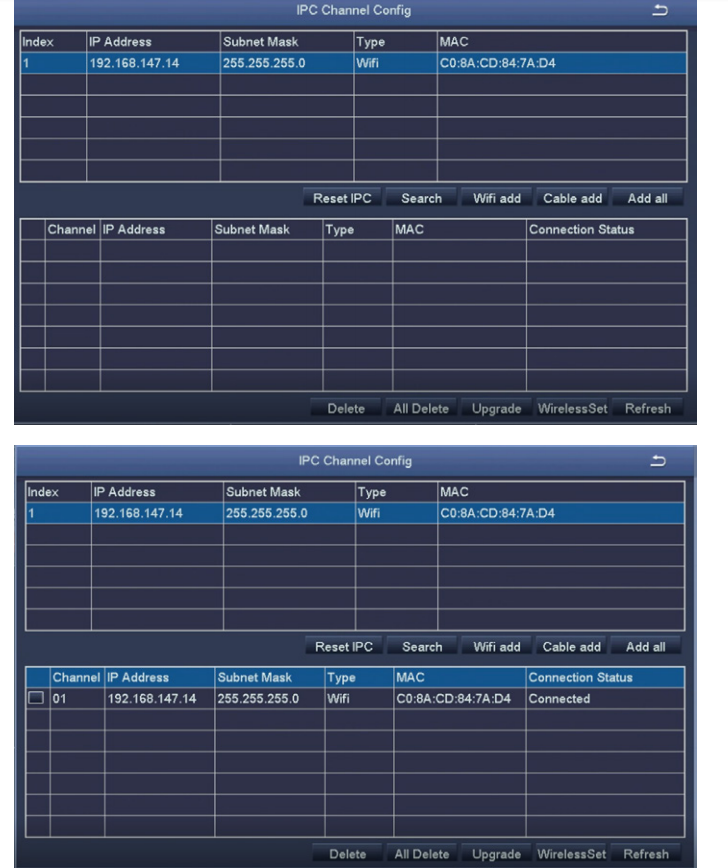

4. Select Add all,and it will show Connected which it means the good connection ,otherwise ,it will show unconnected status.

2) Disconnect the Ethernet cable between the camera and the NVR, and connect the NVR and the Router via the Ethernet cable (Only connect the NVR to network).

Note: This camera is only compatible with ZOSI NVR.
